Key Features

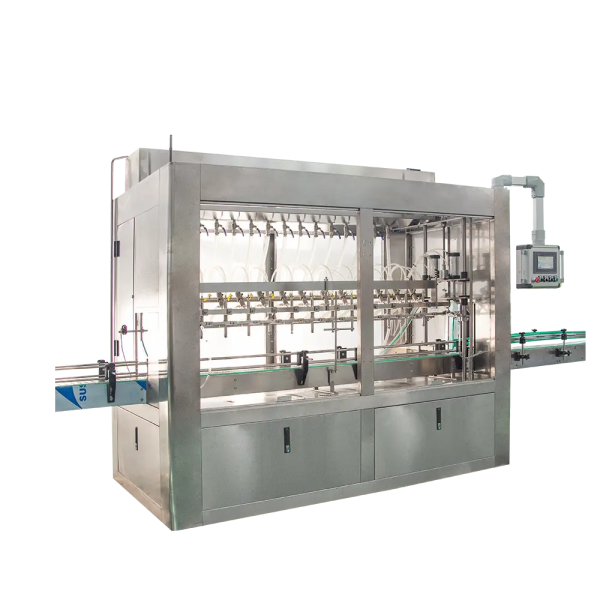

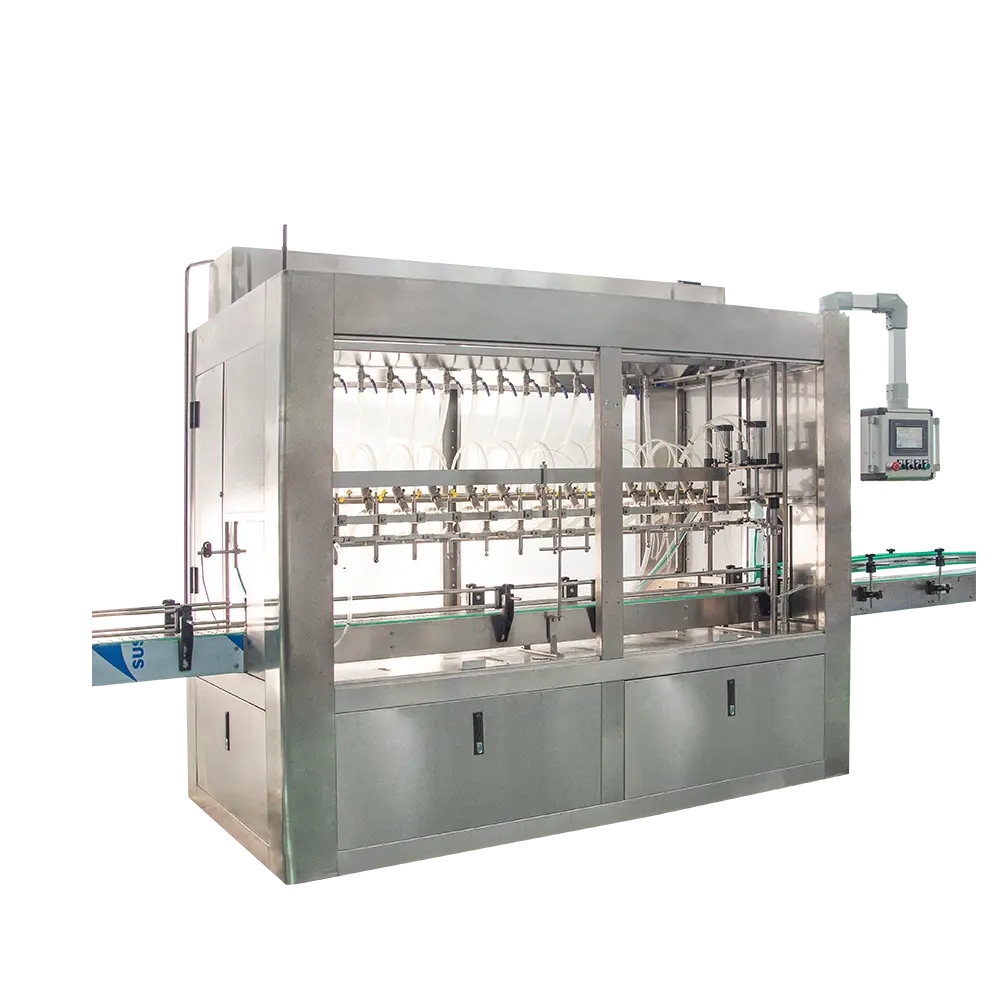

The NP-GF model is a high-quality and reliable automatic gravity filler that is ideal for packaging thin, easy-to-foam products such as soy sauce, window cleaners, and vinegar, and is ideal for filling low-viscosity products such as household chemicals, detergents, pharmaceuticals, and food products.

Gravity Liquid Filling Machine is multi-functional and can realize efficient and precise filling operation:

Structure: The equipment is made of 304 and 316 stainless steel materials, with high corrosion resistance. It has a long service life and combines aesthetics with practicality.

High-precision liquid level control: The equipment is capable of precisely regulating the liquid level to prevent uneven filling caused by bubbles or overflow. This ensures consistent and stable filling outcomes for every container.

Operation interface: Adopting multi-functional touch screen, supporting bilingual operation interface in Chinese and English, user experience is friendly, ensuring convenient and controllable operation.

Intelligent detection system: integrated advanced photoelectric sensors automatically monitor the position of containers to ensure that filling is suspended when there are no containers, thus avoiding production accidents and material waste.

Scope of application: Designed to handle high-bubbling liquids, the filling precision is extremely high, effectively solving the common complexity problems in the filling process of foaming liquids.

Optimized design of filling head: The filling head is precision designed with adsorption and anti-drip functions to ensure high efficiency and accuracy in the filling process, while keeping the production environment clean and tidy.

Application Industry

The gravity liquid filling machine stands out as an adaptable and cutting-edge solution for automated liquid packaging. This machine can meet different production scales and can be customized with 6, 8, 10, 12, 16, 18, or 20 filling heads for configuration. Not only does it ensure that different production volumes can be met, but it also achieves efficient production. The machine is good at precise dispensing of thin, free-flowing liquids and well-suited for some products such as soy sauce, cleaning agents, and vinegar. Its precision and reliability make it a best choice for the food and beverage, pharmaceutical, and cosmetics industries. Maintaining product integrity is crucial in these industries. Furthermore, this versatile machine can be easily expanded into a complete production line when used in conjunction with our advanced capping machine, labeling machine, and sealing system. This integration enhances operational efficiency and product consistency, providing you with a streamlined packaging solution.

Technical Parameters

Name	Automatic gravity Filling Machine
Measurement precision	±0.5%-1% for 1L
Capacity	800b/h-7200b/h
Voltage	220VAC 50/60hz
Air pressure	4~6kg/cm²
Air consumption	1m/min
Power	1000w
