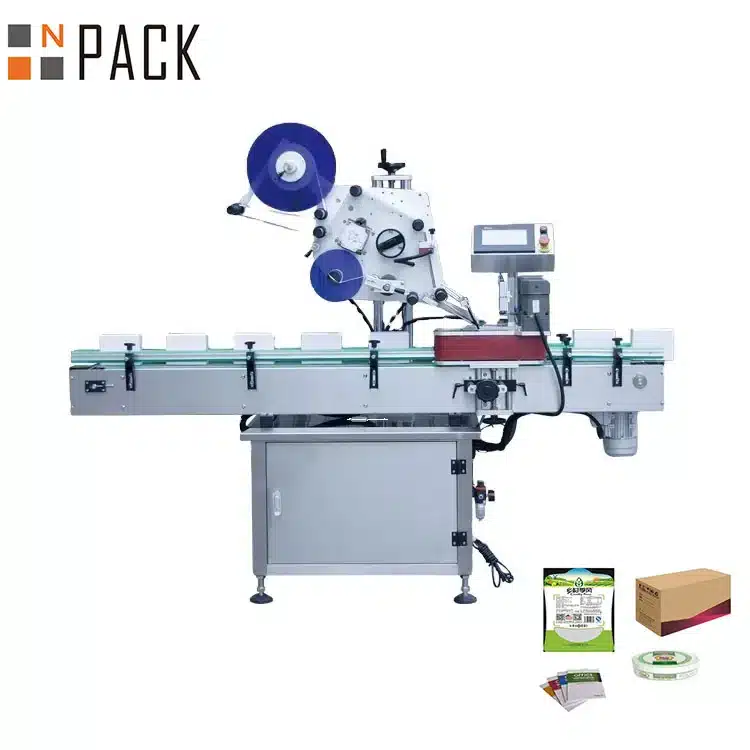

NP-PL can precisely label the top and bottom surfaces of various containers such as flat, edge-sealed bags including zipper bags and stand-up pouches.
Key Features
The bag sticker labeling machine is a highly efficient equipment meticulously designed to meet the demands of modern packaging processes. The three main components of the machine include the pouch or bag automatic feeder, vacuum conveyor belt, and labeling applicator.
High-quality construction: Made of 304/316 stainless steel, resistant to corrosion, rust and stains. It can meet GMP standards and be used in a rigorous cleaning environment.
Accuracy: Precise label placement and fast feeding not only ensure that labels are applied accurately but also ensure a smooth labeling process, eliminating any possibility of wrinkles or bubbles.
Stability: The use of high-quality Panasonic or Siemens servo motors provides the machine with excellent power and reliability, maintaining stable performance even in demanding production environments. These motors can precisely control the placement of labels, ensuring that each label is placed exactly in the setting position.
Ease of Use: The Siemens color HMI can adjust label size and position while simplifying the labeling process, ultimately increasing operational efficiency and reducing errors. In addition, the HMI’s clear and intuitive design provides a positive experience for the user.
Adaptable to Various Label Sizes and Shapes: The label printing system offers extensive support for various label dimensions and forms to meet diverse packaging requirements. It accommodates standard rectangular and circular labels while providing the flexibility to create custom shapes.
Flexible Labeling Options: This versatile labeling system can label different sections of the bag flexibly to meet specific packaging designs. Whether it is the front, back, top, bottom, or sides of the bag, this system can align and label precisely.
Customized Settings: Users can adjust the labeling height and angle according to different labeling requirements to ensure that each label can be accurately attached to the target object. The conveyor belt speed and labeling speed can also be flexibly adjusted according to production needs to enhance work efficiency.
Simple Operation: Equipped with an intelligent label counter, which can accurately record label numbers that have been completed. The equipment is easy to operate, maintain and has a long service life. Operators only need to learn to master the operation method briefly.
Wide application range: It can label flat bags, stand-up bags and angle-supported bags to meet different packaging needs.
Parameters
| Technical Parameters | |
| Machine Size | 1600(L)×1000(W)×1250(H)mm |
| Output Speed | 20-100pcs/min depends on label and bottle size |
| Height Label Object | 30-280mm |
| Bag size | max L60cm; max W 40cm; max H10cm |
| Label Height | 15-140mm |
| Label Length | 25-300mm |
| Pastes the sign precision | ±1mm |
| Roll inside | 76mm |
| Roll Outside Diameter | 300mm |
| Power Supply | 220V 0.8KW 50/60HZ |
| Power Supply | 2800(L)×1650(W)×1500(H)mm |
| Weight of Labeling Machine | 450Kg |
Details
– Label roll loading: The label roll is loaded onto the labeling mechanism of the labeling machine. This process involves carefully aligning the label roll and ensuring that it is securely fastened to the machine to prevent any disruptions during operation.
– Bag feeding: The bag is fed into the conveyor system of the machine and separated by a pagination mechanism with appropriate spacing to ensure accurate label pasting. Each bag is meticulously guided through the conveyor system, allowing for precise separation and positioning before reaching the labeling station.
– Label application: The flat labeling machine attaches the label to the bag and presses the label tightly through a roller to remove bubbles. As each bag passes through this stage, precision and consistency are key in ensuring that labels are applied smoothly without any imperfections, resulting in a professional and polished appearance.
– Product discharge: The labeled bags are transported out of the machine, and after labeling, they can be boxed or further processed according to specific production requirements. Once labeled, these bags move seamlessly out of the machine’s workflow, ready for packaging or additional processing steps tailored to meet individual production needs.
