Key Features

• Piston gaskets are made fromnon-corrosive materials suitable for the liquid products.
• The machine is built with 304 stainless steel and comes with a material quality certificate.
• The pistons and dosing head are made from either 304SS or 316L SS, both with material certificates.
• Featurespneumatic shut-off and anti drips filling nozzles
• Pneumatic components are primarily SMC or Festo
• Equipped with an emergency stop button to ensure safety and prevent accidents.
• Support both automatic filling and pedal filling is in a singlemachine
• Ball-bearing and seals are SKF and China top level brand.



Application Industry

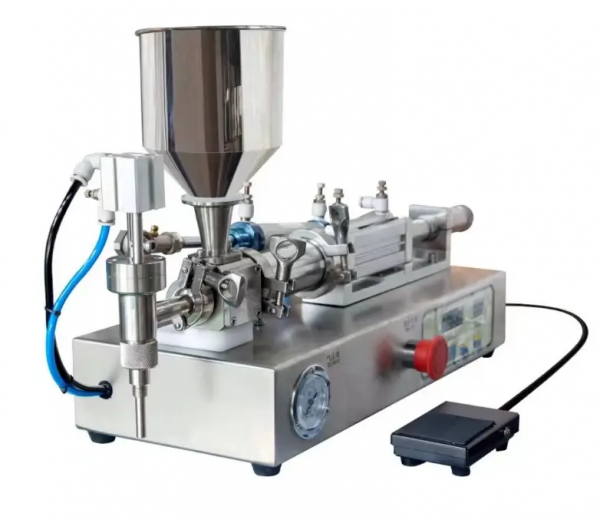

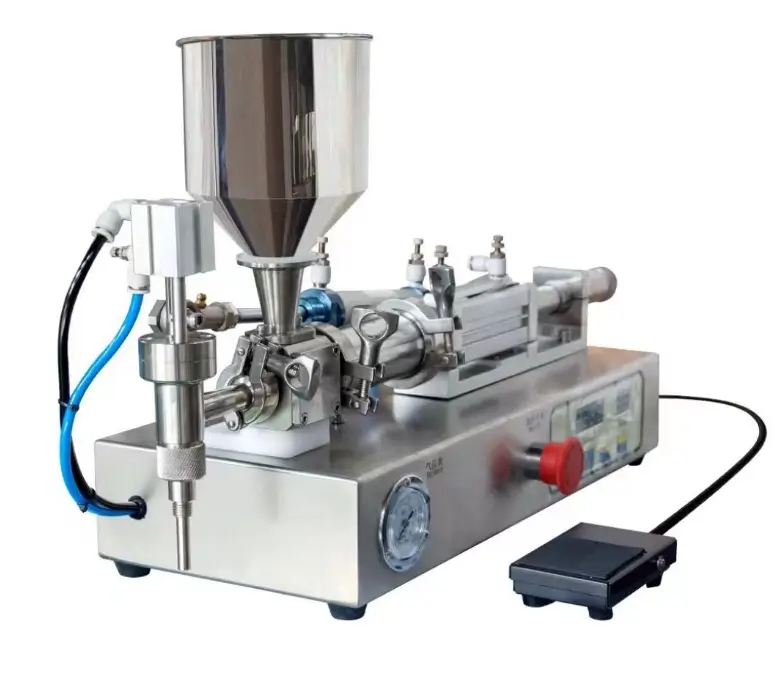

NP-S Semi-Automatic Filling and Metering: Pneumatic volumetric metering technology accurately meters diverse liquid products from low to high viscosities. Due to its high adaptability, it is used for many industries such as food, chemical, cosmetic and pharmaceutical. Its capacity to work with great efficiency in the dosing of both clean clear liquids and particulate ones as well, such as sauces or those with suspended solid components, makes it ideal and versatile for a wide range of product filling needs.

Technical Parameters

Items	NP-S-06	NP-S-12	NP-S-25	NP-S-50	NP-S-100
Filling Range	5-60ml	10-125ml	25-250ml	50-500ml	100-1000ml
Air	4-6kg/cm2	4-6kg/cm2	5-8kg/cm2	5-8kg/cm2	5-8kg/cm2
Capacity	0-30bottles/min
Accuracy	0.50%
Voltage	AC220V 50/60Hz
Power	10W
Net weight	18.2kg	20.1kg	25.8kg	30.5kg	37kg
Gross weight	21kg	23kg	29.7kg	34.5kg	41.5kg
Size	844*290*731	911*290*731	1089*340*811	1180*340*828	1180*340*828



Option Features

• Rotary valve for food sauce with granular solid
• Optional HMI
• Optional servo motor drive
• 30L Double jacket hopper with heating
• Pressure top tank
• Optional ceramic pump cylinder
• Mixing top hoppersavailable
