Key Features

– Made of 304 stainless steel and certified for material quality, it is safer and more reliable during use.

– The piston and dosing head are both made of 316L stainless steel and have passed material certification to ensure that the product meets hygiene standards.

– Can accurately track the position of containers or bottles during the filling process.

– Equipped with 2 or 4 filling heads, compared to traditional piston fillers, the capacity has increased by 50%, greatly improving filling efficiency.

– Remote assistance for maintenance and program updates.

– The equipment adopts multi-axis high-precision synchronous control technology, which can achieve continuous and stable operation, ensuring production efficiency and product quality.

– The piston gasket is made of non-corrosive materials and is suitable for filling various types of liquids.

– Electrical components by Schneider.

– Electrical components with waterproof protection ensure the lifespan and reliability of electrical components in various applications.

– Pneumatic components from SMC or Festo.

– Flexible HMI positioning improves availability, efficiency, and overall user experience for various industrial and commercial applications.

– Controller and HMI from top brands in Europe, Japan, and China.

-In addition to ball bearings and seals from SKF, a leading global supplier, our inventory also includes products from top Chinese brands renowned for their quality and reliability.

– The cables identified with a single-line electrical diagram are crucial for ensuring the proper functioning of electrical systems.

– The servo-driven filling nozzles are designed to move seamlessly from right to left and up and down, ensuring precise and efficient distribution of the liquid contents.

– Pneumatic cut-off and anti-drip filling nozzles precisely control the flow of liquid, ensuring an accurate and efficient filling process.

– One-touch adjustment for different container sizes and No drip tray required.



Technical Parameters

Filling Nozzles	2-4Nozzles
Production Capacity	30 to 100BPM
Filling Volume	50-1000ML
Power	3KW to 6KW, 220/380VAC
Accuracy	±2ML
Driven	Servo Motor
Interface	High-performance intelligent mechanical controllers, and advanced HMIs



Options Features

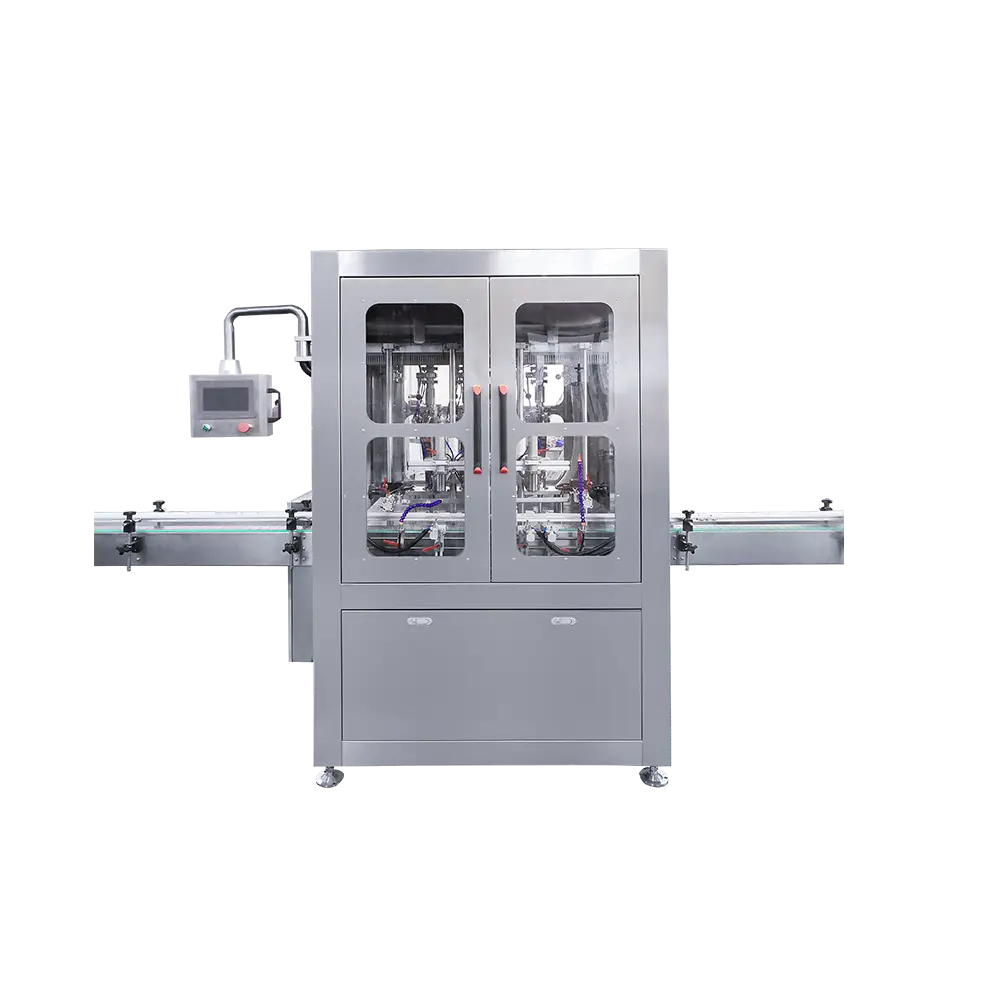

NP-TVF integrates advanced liquid filling technology and achieves precise control and adaptation of each piston stroke motion through a separate servo motor driver, ensuring improved operational accuracy. In addition, the HMI adopts a one click automatic adjustment function, which greatly simplifies the operation process and can easily adapt to containers of different sizes. Humanization factors have also been taken into account in device design, such as adding multilingual support, intelligent fault diagnosis systems, and other functions in interface design, and optimizing button layout and touch screen interaction methods based on ergonomic principles, making operation more convenient and comfortable. At the same time, comprehensive considerations have been made in terms of security. During device operation, various parameters will be automatically monitored and timely alarms will be issued to remind users to pay attention to safety precautions. These comprehensive considerations make NP-TVF more stable and reliable during use and bring higher efficiency and quality assurance to the production line.
