Key Features

– The equipment is made of high-quality 304 stainless steel, with the material certified to ensure durability and safety.

– The pistons and dosing heads are made of corrosion-resistant 316L stainless steel and come with material certificates, guaranteeing high standards and long lifespan.

– Pneumatic components are selected from top-quality brands like SMC or Festo, ensuring system stability and efficiency.

– The (HMI) is installed on the product output side, making it easy for operators to monitor and control the equipment.

– The equipment is equipped with at least three emergency stop buttons, located near the touchscreen, the product insertion side, and the back of the machine, providing multiple layers of safety.

– The CPU and HMI components are chosen from top brands in Europe, Japan, and China, ensuring high performance and reliability.

– The equipment design includes waterproof electrical installations and an advanced CPU system, ensuring safe operation in wet environments.

– Electrical components use the Schneider brand, further enhancing the safety and stability of the equipment.

– Each cable is precisely labeled with a single-line electrical diagram, making maintenance and troubleshooting easier.

– The equipment is fitted with corrosion-resistant piston seals, suitable for various liquid products, ensuring efficient operation under different conditions.

– Bearings and seals are chosen from SKF and top Chinese brands, ensuring high precision and durability in the mechanical parts.

– The servo-controlled diving filling head allows for highly accurate liquid dosing, making it suitable for a wide range of filling needs.

– The equipment is equipped with pneumatic shut-off valves and anti-drip filling nozzles, ensuring a clean and efficient filling process.

– A standard drip tray is also included, effectively preventing liquid spills and keeping the workspace clean.

Application Industry

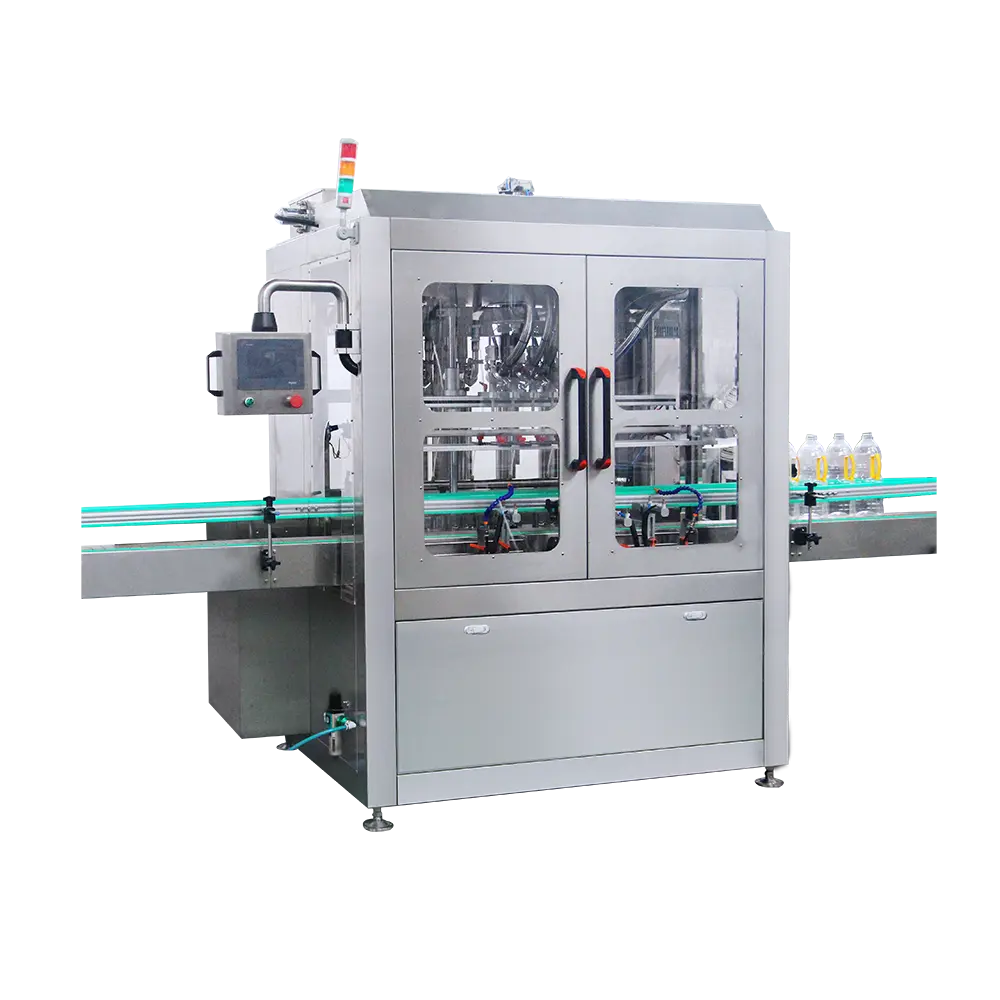

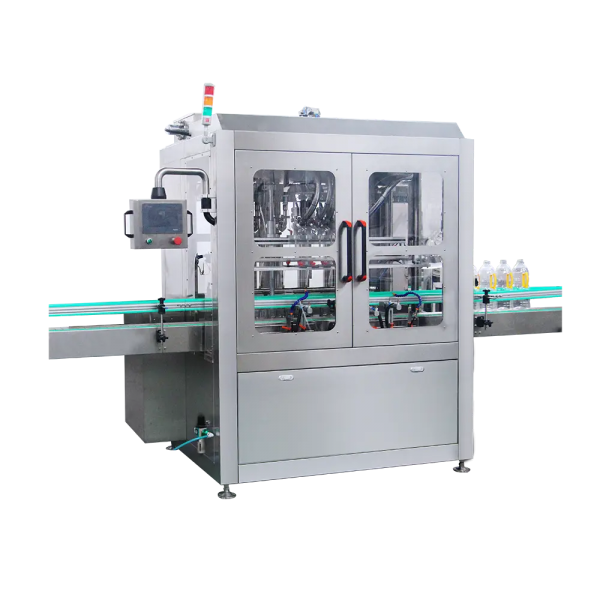

The NP-VF filling machine is an ideal piece of equipment for handling viscous liquids across various industries. Its unique design and outstanding performance make it widely applicable in different fields. Particularly in the personal care and cosmetics industries, the NP-VF demonstrates high efficiency and reliability, suitable for filling a variety of products such as body lotion, creams, lotions, gels, hand sanitizers, serums, shampoos, and cleaners. In addition to cosmetics and daily-use products, this equipment also excels in the food industry, commonly used for filling various liquids and sauces such as ketchup, honey, soy sauce, and cooking oil. With its high flexibility and multifunctionality, the NP-VF not only ensures precise control of liquid dosing but also meets the diverse needs of different industries, making it an indispensable tool in the production process for businesses.

Technical Parameters

Name	Specification
Filling Nozzles	2-20 Nozzles
Production Capacity	10 to 150bpm
Power	1.5KW to 3KW, 220/380VAC
Accuracy	±3ML base on 1000ML
Driven	Servo Motor
Filling Volume	100ml to 5000ml
HMI	German or China Brand



Option Features

– Each piston’s stroke movement is controlled by an independent servo motor, ensuring precise operation and consistency for each piston, which enhances filling accuracy and production efficiency.

– The Human-Machine Interface (HMI) features a one-click automatic adjustment function, allowing easy adaptation to different container sizes with simple operation, enabling quick changeovers and efficient production.

– The equipment is equipped with a mixing top hopper that ensures uniform mixing of materials within the hopper, maintaining consistency and stability during the filling process.

– The hopper is designed with a double-layer jacket and integrated heating system, allowing for temperature control as needed to keep the material at the optimal temperature and state during filling.

– The pressure top tank design maintains stable pressure on the material during filling, ensuring smooth material flow and preventing bubbles or other instabilities from affecting the filling quality.

– The equipment includes a rotary valve specifically designed for dispensing food sauces containing solid particles. It can effectively handle various particulate materials, ensuring even distribution and high-quality filling of the sauce.
